MT6752__htc__HTC_D626q__htc_a32ml_dtul__4.4.4__ALPS.KK2.MP13.V1.1

MT6752__htc__HTC_D626q__htc_a32ml_dtul__4.4.4__ALPS.KK2.MP13.V1.1

Operation : Read Flash [ v1.58 ]

1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey

Wait for phone...
Phone found! [ 5 ]
Sync...
Inital Boot Ok!
BB_CPU_PID : 6752
BB_CPU_NME : [MediaTek] MT6732|MT6752_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer   : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with PRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x8F
NAND Flash : NOT INSTALLED
eMMC Flash : 90014A484147326505073946B6A7B2F1
Initialize Memory ...
DRAM already initialized by Preloader
DAgent sent , init HW now
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x90 , OEM : 014A
[eMMC] : FLASH_INF : [HYNIX] , e2GA
[eMMC] : FLASH_CID : 90014A484147326505073946B6A7B2F1
[eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00400000
[eMMC] : FLASH_LEN : 0x00000003AB800000
[eMMC] : FLASH_UCP : 15032 MiB [eMMC 16 GiB]
DEV RID    : 0xA0E63D9608AC9AFE7E5EF3F122EF6037
INT RAM    : 0x00020000
EXT RAM    : 0x80000000 [2 GiB]
BOOT TYPE  : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!

Reading Flash Content now ...

xGPT : Normalize settings Ok!

Brand     : htc
ProdName  : a32ml_htc_Asia_TW

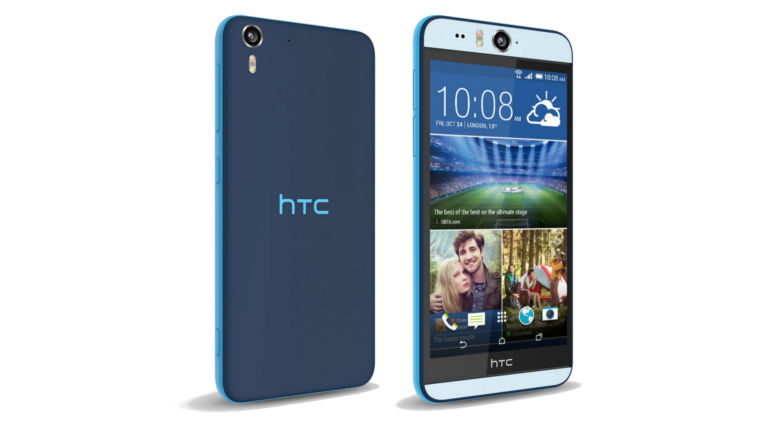

ProdModel : HTC D626q
Device    : htc_a32ml_dtul
AndroidVer: 4.4.4
MTKxCPU   : MT6752
MTKxPRJ   : ALPS.KK2.MP13.V1.1

[Read Ok] : preloader_lcsh6752_lwt_kk.bin
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : secro.img
[Read Ok] : logo.bin
[Read Ok] : cota.img
[Read Ok] : tz1.img
[Read Ok] : tz2.img
[Read Ok] : system.img
[Read Ok] : cache.img
[Read Ok] : userdata.img

[ScatCFG] : MT6752 / V1.1.2 / lcsh6752_lwt_kk / EMMC
Android Info saved
MAUI Meta DB saved
HWConfig Info saved
FW Size : 1898 MiB
Scatter saved to : C:\Users\SERVER02\Desktop\New folder\MT6752__htc__HTC_D626q__htc_a32ml_dtul__4.4.4__ALPS.KK2.MP13.V1.1\

All done!

Done!
Elapsed: 00:07:28
Reconnect Power/Cable!
